1.2.1.輸入：100-240VAC 50/60Hz Page 1
輸出：3-48VDC功率3-300W
1.2.2.功能特性：短路保護、過載保護、防雷擊
符合RoHS&WEEE環保、CEC節能指令
符合EMC、FCC電磁兼容
1.2.3.環境條件
使用-20~+45℃、10-90%RH
儲存-40~+75℃、10-90%RH
1.2.4.標準：UL1012/UL1310/UL60950/FCC PART15
EN60950/EN60335/EN55014/EN55022 |
|||
|

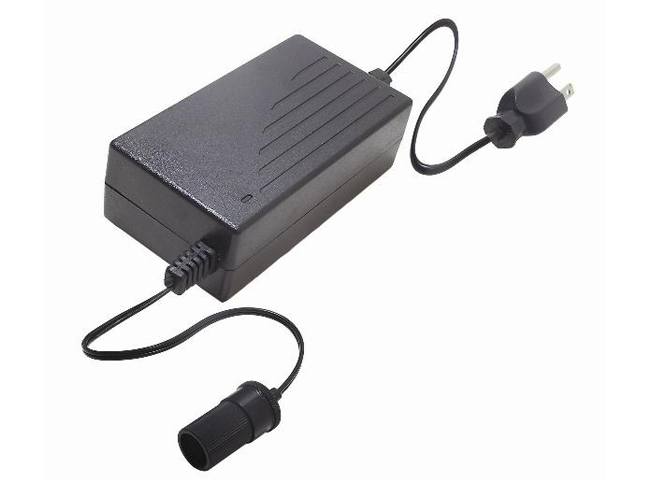

Part name/產品名: Switching Power Supply 開關電源 |
Model No./ 型號: |
||
|
Design No./設計編號: |
Customer Code 客戶代碼:
|
||
|
Customer Product No. 客戶產品編號: |
Date/日期 : |
||
|
SCOPE/描述:
This document details the electrical,mechanical and environmental,it is a Switching Power
Supply of 0-48V;0-15A;300Watts output,when 100V~240 VAC input,
本文明確了產品的電性規格,機械尺寸,環境條件,該產品輸入電壓范圍100V~240 VAC,輸出
電壓為:0-48V;0-15A;200瓦的開關電源 |
|||
|
1.Electrical Characteristics/電器特性: |
|||
|
Items/項目 |
Specification/規格 |
Remarks/備注 |
|
|
Input/輸入: |
|||
|
Input rated voltage /輸入額定電壓 |
100-240 VAC |
|
|
|
Input rated frequency/輸入額定頻率 |
50/60 Hz |
|
|
|
Input range current /輸入額定電流 |
1.5AMAX（最大） |
At 100VAC/60Hz,在100VAC/60Hz情況下 |
|
|
Efficiency/效率 |
80 % MIN（最?。?/font> |
At full load and within input rated voltage
在滿載和額定輸入情況下 |
|
|
Input protection/輸入保護: |
Rated Fuse 3.15A/250 VAC |
保險絲額定值 3.15A/250 VAC
Approval by 有認證 |
|
|
Output/輸出: |
|||
|
Output voltage / 輸出電壓 |
0-48V + 5% VDC |
No load/空載 |
|
|
0-48V + 5% VDC |
Full load/滿載 |
||
|
Output current/輸出電流 |
0-15A |
Maximum loading current
最大負載電流 |
|
|
Output protection/輸出保護: |
|||
|
Over current
過載保護 |
No odor, smoke, fire, plastic deformation, and excessive heat happen. 無氣味, 冒煙, 冒火,塑膠變形, 過熱. |
The products are out of working when over current.
過載時，產品不工作。 |
|
|
Short-circuit
短路 |
No odor, smoke, fire, plastic deformation, and
excessive heat happen. 無氣味, 冒煙, 冒火,塑膠變形, 過熱. |
Short-circuit output for 1 minute.
輸出短路1分鐘. |
|
|
Safety Standard/安規標準 |
|||
|
■ UL/CUL ■ CSA ■ PSE ■ GS ■ CE GS mark is accredited by TUV □ CB □ BS ■ SAA □ CCC ■ K-Mark □ PSB |
|||
|
EMC Standard/電磁兼容: |
|||
|
□ FCC □ C-Tick □ VCCI □ BSMI □ CE/ EMC |
|||
|
Others/其他: |
|||
|
Hi-pot Test (Primary to Secondary)
高壓測試(初級對次級) |
1500VAC/10mA/1 minute |
The voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage and held at that value for 60 S. 測試電壓是逐漸從0上調至規定的電壓值并保持60 秒. |
|
|
RELIABILITY/可靠度: |
|||
|
Burn-In/燒機:100%burn-in test at 80-100%of full rated load at 35-40℃burn-in room,input voltage 220 VAC,48 hrs test for samples,24 hrs test for pilot run samples 4 hrs test for mass production.100%燒機測試在負載為80-100%狀況，燒機房溫度為35-40℃，輸入電壓為220 VAC；工程樣品測試時間為48小時,導航樣品為24小時,批量產品為4小時。 |
|||
|
Temperature rise/溫升:In environmental temperature at 25 degrees.The maximum temperature rise measured at any point on the enclosure surface shall not exceed 50 degrees in closed carton chamber and no air flow.在環境溫度為25度下,外殼表面任意一點它的最高溫升不超過50度，實驗品是置于封閉的空氣不流通的容器中進行. |
|||
|
2.Mechanical Characteristics/機械特性: |
|||
|
Items/項目 |
Specification/規格 |
Remarks/備注 |
|
|
Dimension/尺寸 |
116*63*38mm only FYI |
Length*Width*Height/長*寬*高 |
|
|
Case Material/外殼材料 |
PC,PC+ABS, or equivalent |
Desk top/桌上型 |
|
|
Input Plug/輸入插頭 |
18AWG SPT-2 105℃ 2PIN UL POLARITY |
BLADE / 1200 + 100mm |
|
|
Output Cord/輸出線 |
18AWG SPT-1 105℃ / 1500+100mm |
DC頭 |
|
|
Connector polarity/連接器極性 |
|
5.5*2.1*11 mm only FYI |
|
|
Color/顏色 |
Black |
Fine texture/顏色均勻無色差。 |
|
|
Drop test/跌落試驗 |
One time Per side, at one meter. 1米一次, 每個面。
After test, unit is not broken, disassembled, or damaged to access hazardous parts.
測試后，產品不可以損壞，裂開或者可以觸到危險部件。 |
||
|
3.Environmental Characteristics/環境特性: |
|||
|
Storage temperature/存儲溫度 |
-20 to +60 degrees centigrade(攝氏度) |
|
|
|
Operating temperature/操作溫度 |
0 to +40 degrees centigrade. (攝氏度) |
|
|
|
Storage RH range/相對存儲濕度 |
5 to 95% |
RH: Relative humidity/相對濕度 |
|
|
Operating RH range/相對操作濕度 |
20 to 85% |
|
|
|
Approved by: 核準審核制作 |
|||
|
